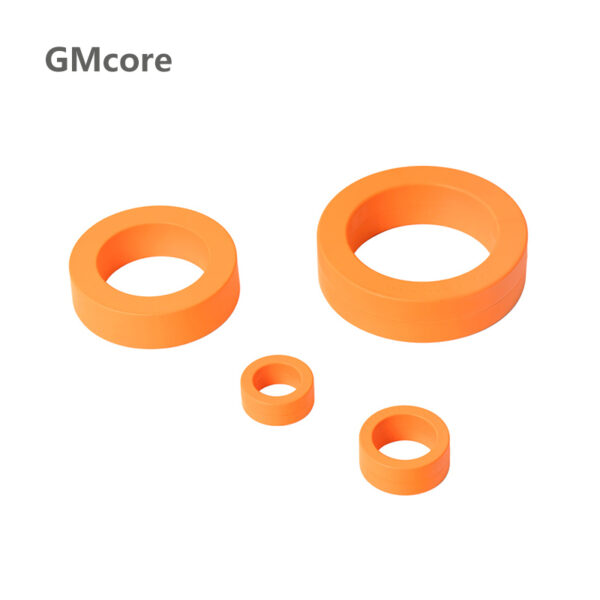

Standard Nanocrystalline Common Mode Cores
Standard Nanocrystalline Common Mode Cores; High Bs (1.2T), high μi (>80000), and high anti-saturation ability, can reduce the core’ s volume effectively ; Excellent permeability characteristics in a wide frequency range; The performance change rate is ±10% during temperature -40°C~150°C
Ask for Quick Quotation
Product Description
Introduction:
Nanocrystalline cores does not have mechanical strength ,it’s not suitable to wind directly on it. So it will usually pack by plastic case or by epoxy resin spraying.
Typical Application:
- New energy applications (PV Inverter, wind driven generator, EV charging station)
- Consumer Appliance(TV, AC, computer, game console)
- Medical equipment (MRI machine, ventilator)
- Other electronics(Server power supply, UPS, Railway)
Performance Characteristics:
Performance Characteristics for Toroidal Common Mode Core for Power Transformers:
- Meet environmental standards;
- The case complies with the flame retardant standard UL94-V0;
- customized according to temperature resistance grade level B(130℃)to level F(155℃);
Standard Product Specifications:
| No. | P/N | Dimensions (mm) | AL Nominal （(μH)） | Saturation Current Typical （A） | |||
| Core Dimensions (mm) | FG Dimensions (mm) | 10kHz | 100kHz | 10kHz | 100kHz | ||
| 1 | GMNC100705-01 | 9.8*6.5*4.5 | 11.2*5.1*5.8 | 25.5 | 6.4 | 0.2 | 0.4 |
| 2 | GMNC120805-01 | 12*8*4.5 | 14.1*6.6*6.3 | 28 | 6.8 | 0.2 | 0.4 |
| 3 | GMNC131005-01 | 12.5*10*5 | 14.3*8.5*7.0 | 10 | 3.6 | 0.4 | 0.8 |
| 4 | GMNC151005-01 | 15*10*4.5 | 17.1*7.9*6.5 | 27 | 6.7 | 0.3 | 0.5 |
| 5 | GMNC161006-01 | 16*10*6 | 17.9*8.1*8.1 | 43 | 10.1 | 0.3 | 0.6 |
| 6 | GMNC161006-02 | 16*10*6 | 17.9*8.1*8.1 | 11.7 | 6.5 | 1.2 | 1.7 |
| 7 | GMNC181306-01 | 17.5*12.6*6 | 19.0*11.0*8.0 | 30 | 6.9 | 0.3 | 0.7 |
| 8 | GMNC191510-01 | 19*15*10 | 21.2*13.0*12.3 | 36.1 | 8.8 | 0.4 | 0.7 |
| 9 | GMNC201308-01 | 20*12.5*8 | 22.6*10.3*10.2 | 55.2 | 13.6 | 0.4 | 0.7 |
| 10 | GMNC201308-02 | 20*12.5*8 | 22.6*10.3*10.2 | 14.3 | 9.1 | 1.4 | 2.1 |
| 11 | GMNC252010-01 | 25*20*10 | 27.6*17.4*12.8 | 28.4 | 7.3 | 0.6 | 1.1 |
| 12 | GMNC251610-01 | 25*16*10 | 27.9*13.6*12.5 | 65.5 | 15.5 | 0.4 | 0.9 |
| 13 | GMNC251610-02 | 25*16*10 | 27.9*13.6*12.5 | 17 | 11.5 | 1.7 | 2.6 |
| 14 | GMNC251610-03 | 25*16*10 | 27.9*13.6*12.5 | 3.2 | 3.1 | 9.3 | 9.6 |
| 15 | GMNC302010-01 | 30*20*10 | 32.8*17.6*12.5 | 59.3 | 14 | 0.5 | 1 |
| 16 | GMNC302010-02 | 30*20*10 | 32.8*17.6*12.5 | 15.5 | 11.1 | 2.1 | 3.1 |
| 17 | GMNC302010-03 | 30*20*10 | 32.8*17.6*12.5 | 2.9 | 2.8 | 11.4 | 11.8 |
| 18 | GMNC302015-01 | 30*20*15 | 32.8*17.8*17.8 | 88 | 20 | 0.5 | 1.1 |
| 19 | GMNC403215-01 | 40*32*15 | 43.1*28.7*18.5 | 47.2 | 11.1 | 0.8 | 1.5 |
| 20 | GMNC403215-02 | 40*32*15 | 43.1*28.7*18.5 | 12.2 | 7.9 | 3.7 | 5.1 |
| 21 | GMNC403215-03 | 40*32*15 | 43.1*28.7*18.5 | 2.3 | 2.2 | 16.6 | 17.1 |
| 22 | GMNC402515-04 | 40*25*15 | 43.1*22.5*18.5 | 101 | 23.1 | 0.7 | 1.4 |
| 23 | GMNC402515-05 | 40*25*15 | 43.1*22.5*18.5 | 25.4 | 17.2 | 2.9 | 4.2 |
| 24 | GMNC403215-06 | 45*30*15 | 48.3*26.4*18.2 | 87.5 | 20.3 | 0.8 | 1.6 |
| 25 | GMNC403215-07 | 45*30*15 | 48.3*26.4*18.2 | 24.3 | 15.9 | 3 | 4.5 |
| 26 | GMNC403215-08 | 45*30*15 | 48.3*26.4*18.2 | 15.7 | 14.3 | 4.6 | 5.8 |
| 27 | GMNC504020-01 | 50*40*20 | 53.5*36.3*23.4 | 45.3 | 14 | 1.4 | 2.7 |
| 28 | GMNC504020-02 | 50*40*20 | 53.5*36.3*23.4 | 18 | 10 | 3.5 | 5.3 |
| 29 | GMNC635025-01 | 63*50*25 | 67.3*46.5*28.6 | 58.6 | 18.1 | 1.8 | 3.8 |
| 30 | GMNC635022-02 | 63*50*25 | 67.3*46.5*28.6 | 23.3 | 13.5 | 4.4 | 6.7 |
| 31 | GMNC635025-03 | 63*50*25 | 67.3*46.5*28.6 | 3.3 | 3.2 | 30.2 | 30.9 |
| 32 | GMNC805020-01 | 80*50*20 | 86.0*44.7*25.7 | 94 | 28 | 1.4 | 2.8 |
| 33 | GMNC805020-02 | 80*50*20 | 86.0*44.7*25.7 | 35 | 24 | 5.5 | 8.2 |
| 34 | GMNC805020-03 | 805020 | 86.0*44.7*25.7 | 9.6 | 9.2 | 26.4 | 27.3 |
| 35 | GMNC906020-01 | 906020 | 95.4*54.7*24.7 | 81 | 25.1 | 2.4 | 4.5 |
| 36 | GMNC906020-02 | 906020 | 95.4*54.7*24.7 | 4.6 | 4.5 | 40.9 | 41.8 |
| 39 | GMNC1027625-01 | 1027625 | 108.1*70.0*30.3 | 68.8 | 21.6 | 3.8 | 6.7 |
| 40 | GMNC1027625-02 | 1027625 | 108.1*70.0*30.3 | 19.1 | 17.2 | 10.7 | 13.6 |
| 41 | GMNC1027625-03 | 1027625 | 108.1*70.0*30.3 | 4.3 | 4.2 | 47.7 | 48.5 |
| 42 | GMNC16013025-01 | 16013025 | 166.9*123.9*30.5 | 26.8 | 13.7 | 8.4 | 13.6 |
| 43 | GMNC16013025-02 | 16013025 | 166.9*123.9*30.5 | 20.1 | 13.1 | 11.3 | 17.1 |
| 44 | GMNC16013025-03 | 16013025 | 166.9*123.9*30.5 | 12.9 | 11.7 | 17.6 | 22.3 |
| 45 | GMNC16013025-04 | 16013025 | 166.9*123.9*30.5 | 2.9 | 2.9 | 79.3 | 81.1 |
