Nanocrystalline High Rectangular Ratio Leakage Current Transformer Cores
Nanocrystalline high-aspect-ratio leakage current transformer cores possess medium-to-low saturation magnetic induction (Co-based amorphous 0.58T; Fe-based nanocrystalline 1.2T), low coercivity, low loss, excellent wear and corrosion resistance, and low temperature dependence.
Ask for Quick Quotation
Product Description
Typical Application:
- Magnetic Amplifier(MagAmp)
- Leakage Current Transformer
- Magnetic Sensor
- Spike Suppressor

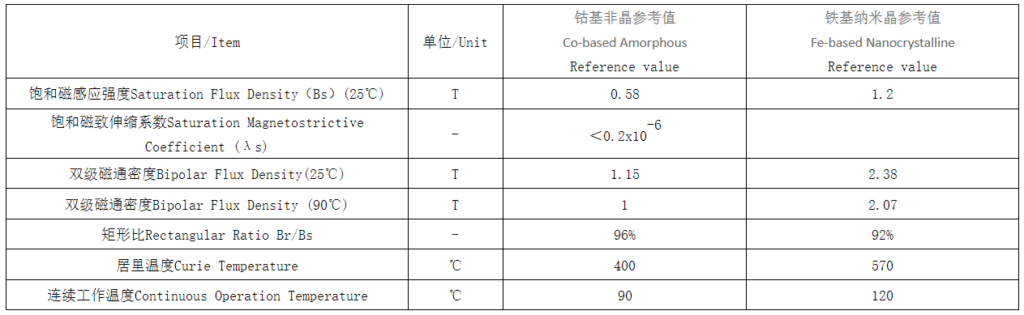

Comparison of Fe-based Nanocrystalline & Co-based Amorphous High Rectangular Ratio Magnetic Cores:
Curves Comparison of Fe-based Nanocrystalline & Co-based Amorphous High Rectangular Ratio Magnetic Cores:

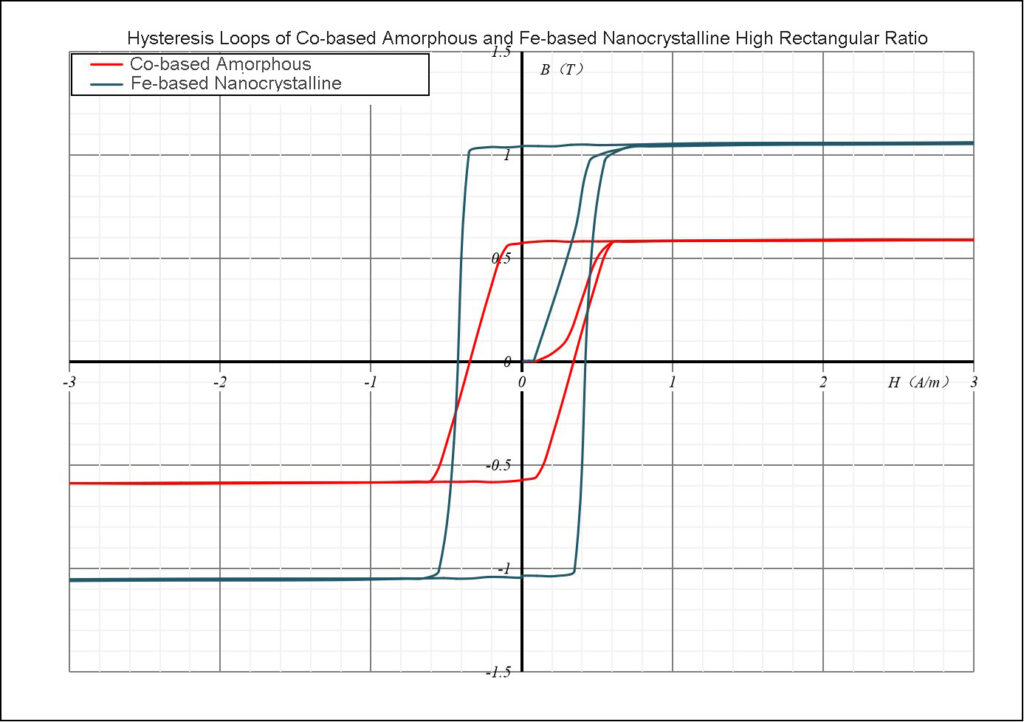

Fig.1 Hysteresis Loops of Co-based Amorphous and Fe-based Nanocrystalline High Rectangular Ratio

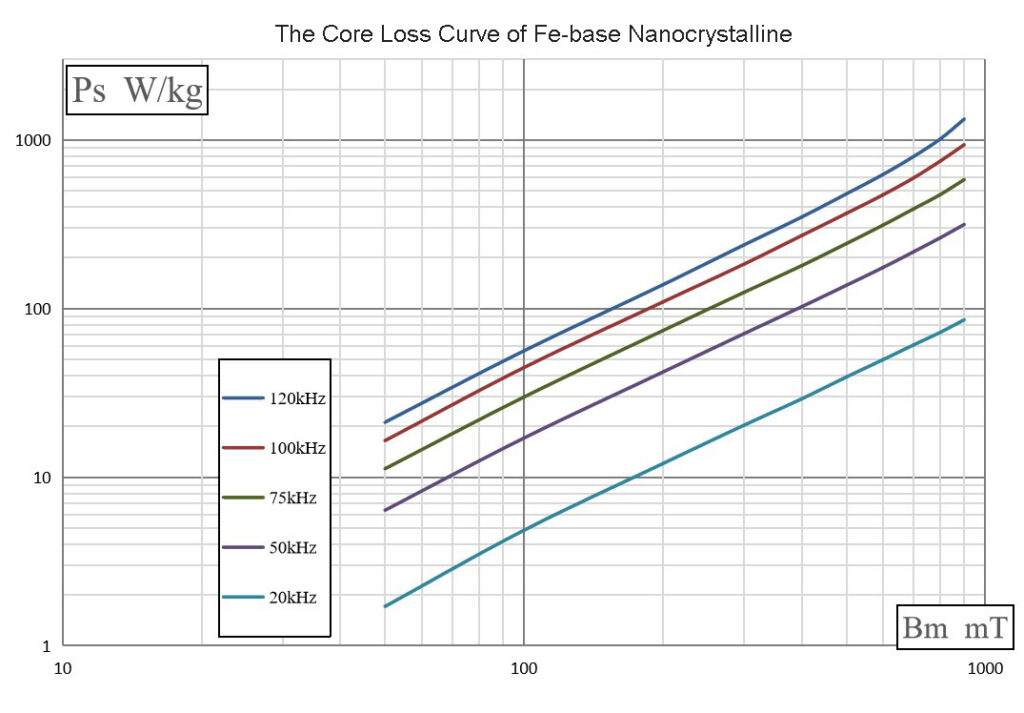

Fig.2 The Core Loss Curve of Fe-based Nanocrystalline

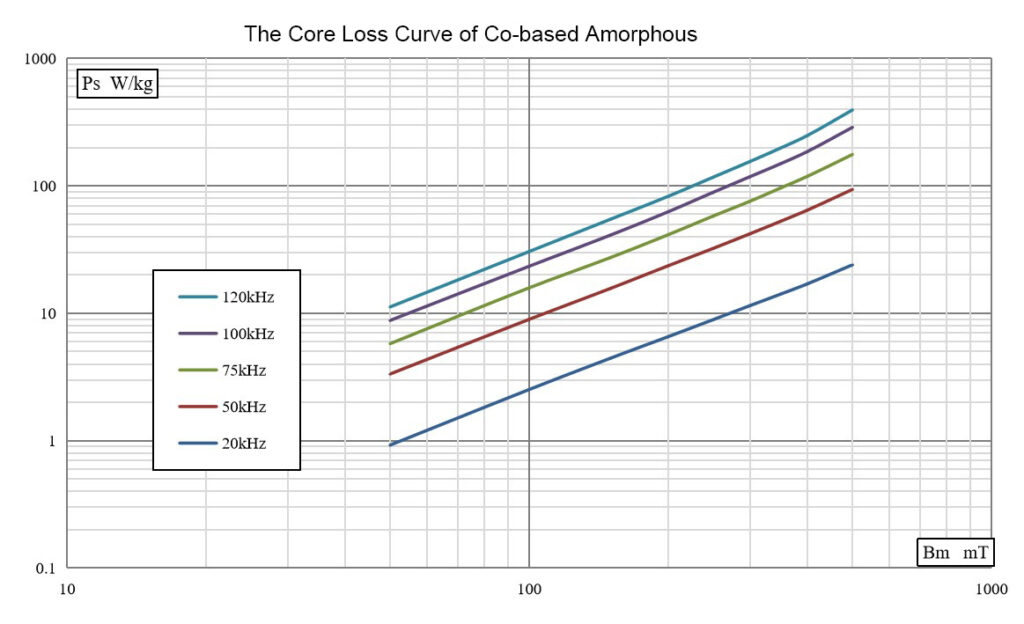

Fig.3 The Core Loss Curve of Co-basedAmorphous
