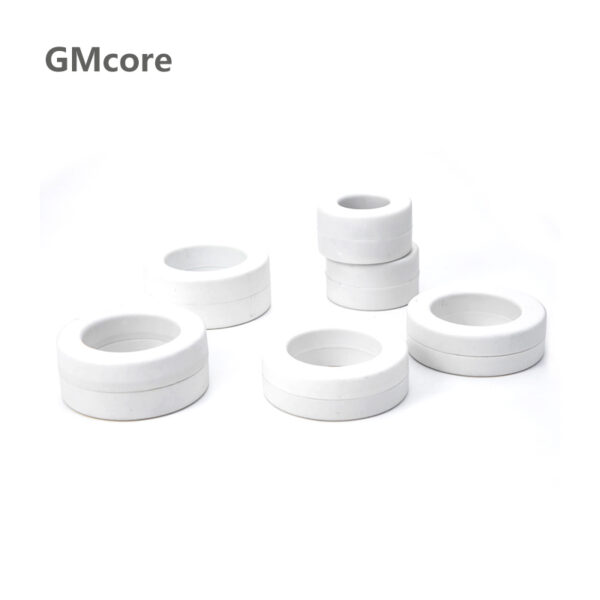

Nanocrystalline PV Inverter Core with Temperature Resistance Plastic Case
Nanocrystalline PV Inverter Core with Temperature Resistance Plastic Case; Meet environmental standards; The case complies with the flame retardant standard UL94-V0; Material can be customized according to temperature resistance grade level B(130℃) to level F(155℃) ；
Ask for Quick Quotation
Product Description
Introduction：
Nanocrystalline PV Inverter Core with Temperature Resistance Plastic Case does not have mechanical strength ,it’s not suitable to wind directly on it. So it will usually pack by plastic case or by epoxy resin spraying.
Typical Application:
- New energy applications (PV Inverter, wind driven generator, EV charging station)
- Consumer Appliance(TV, AC, computer, game console)
- Medical equipment (MRI machine, ventilator)
- Other electronics(Server power supply, UPS, Railway)
Performance Characteristics:
Performance Characteristics for Toroidal Common Mode Core for Power Transformers：
- Meet environmental standards;
- The case complies with the flame retardant standard UL94-V0;
- customized according to temperature resistance grade level B(130℃)to level F(155℃);
Standard Product Specifications:
| No. | P/N | Dimensions (mm) | AL Nominal （(μH)） | Saturation Current Typical （A） | |||
| Core Dimensions (mm) | FG Dimensions (mm) | 10kHz | 100kHz | 10kHz | 100kHz | ||
| 1 | GMNC100705-01 | 9.8*6.5*4.5 | 11.2*5.1*5.8 | 25.5 | 6.4 | 0.2 | 0.4 |
| 2 | GMNC120805-01 | 12*8*4.5 | 14.1*6.6*6.3 | 28 | 6.8 | 0.2 | 0.4 |
| 3 | GMNC131005-01 | 12.5*10*5 | 14.3*8.5*7.0 | 10 | 3.6 | 0.4 | 0.8 |
| 4 | GMNC151005-01 | 15*10*4.5 | 17.1*7.9*6.5 | 27 | 6.7 | 0.3 | 0.5 |
| 5 | GMNC161006-01 | 16*10*6 | 17.9*8.1*8.1 | 43 | 10.1 | 0.3 | 0.6 |
| 6 | GMNC161006-02 | 16*10*6 | 17.9*8.1*8.1 | 11.7 | 6.5 | 1.2 | 1.7 |
| 7 | GMNC181306-01 | 17.5*12.6*6 | 19.0*11.0*8.0 | 30 | 6.9 | 0.3 | 0.7 |
| 8 | GMNC191510-01 | 19*15*10 | 21.2*13.0*12.3 | 36.1 | 8.8 | 0.4 | 0.7 |
| 9 | GMNC201308-01 | 20*12.5*8 | 22.6*10.3*10.2 | 55.2 | 13.6 | 0.4 | 0.7 |
| 10 | GMNC201308-02 | 20*12.5*8 | 22.6*10.3*10.2 | 14.3 | 9.1 | 1.4 | 2.1 |
| 11 | GMNC252010-01 | 25*20*10 | 27.6*17.4*12.8 | 28.4 | 7.3 | 0.6 | 1.1 |
| 12 | GMNC251610-01 | 25*16*10 | 27.9*13.6*12.5 | 65.5 | 15.5 | 0.4 | 0.9 |
| 13 | GMNC251610-02 | 25*16*10 | 27.9*13.6*12.5 | 17 | 11.5 | 1.7 | 2.6 |
| 14 | GMNC251610-03 | 25*16*10 | 27.9*13.6*12.5 | 3.2 | 3.1 | 9.3 | 9.6 |
| 15 | GMNC302010-01 | 30*20*10 | 32.8*17.6*12.5 | 59.3 | 14 | 0.5 | 1 |
| 16 | GMNC302010-02 | 30*20*10 | 32.8*17.6*12.5 | 15.5 | 11.1 | 2.1 | 3.1 |
| 17 | GMNC302010-03 | 30*20*10 | 32.8*17.6*12.5 | 2.9 | 2.8 | 11.4 | 11.8 |
| 18 | GMNC302015-01 | 30*20*15 | 32.8*17.8*17.8 | 88 | 20 | 0.5 | 1.1 |
| 19 | GMNC403215-01 | 40*32*15 | 43.1*28.7*18.5 | 47.2 | 11.1 | 0.8 | 1.5 |
| 20 | GMNC403215-02 | 40*32*15 | 43.1*28.7*18.5 | 12.2 | 7.9 | 3.7 | 5.1 |
| 21 | GMNC403215-03 | 40*32*15 | 43.1*28.7*18.5 | 2.3 | 2.2 | 16.6 | 17.1 |
| 22 | GMNC402515-04 | 40*25*15 | 43.1*22.5*18.5 | 101 | 23.1 | 0.7 | 1.4 |
| 23 | GMNC402515-05 | 40*25*15 | 43.1*22.5*18.5 | 25.4 | 17.2 | 2.9 | 4.2 |
| 24 | GMNC403215-06 | 45*30*15 | 48.3*26.4*18.2 | 87.5 | 20.3 | 0.8 | 1.6 |
| 25 | GMNC403215-07 | 45*30*15 | 48.3*26.4*18.2 | 24.3 | 15.9 | 3 | 4.5 |
| 26 | GMNC403215-08 | 45*30*15 | 48.3*26.4*18.2 | 15.7 | 14.3 | 4.6 | 5.8 |
| 27 | GMNC504020-01 | 50*40*20 | 53.5*36.3*23.4 | 45.3 | 14 | 1.4 | 2.7 |
| 28 | GMNC504020-02 | 50*40*20 | 53.5*36.3*23.4 | 18 | 10 | 3.5 | 5.3 |
| 29 | GMNC635025-01 | 63*50*25 | 67.3*46.5*28.6 | 58.6 | 18.1 | 1.8 | 3.8 |
| 30 | GMNC635022-02 | 63*50*25 | 67.3*46.5*28.6 | 23.3 | 13.5 | 4.4 | 6.7 |
| 31 | GMNC635025-03 | 63*50*25 | 67.3*46.5*28.6 | 3.3 | 3.2 | 30.2 | 30.9 |
| 32 | GMNC805020-01 | 80*50*20 | 86.0*44.7*25.7 | 94 | 28 | 1.4 | 2.8 |
| 33 | GMNC805020-02 | 80*50*20 | 86.0*44.7*25.7 | 35 | 24 | 5.5 | 8.2 |
| 34 | GMNC805020-03 | 805020 | 86.0*44.7*25.7 | 9.6 | 9.2 | 26.4 | 27.3 |
| 35 | GMNC906020-01 | 906020 | 95.4*54.7*24.7 | 81 | 25.1 | 2.4 | 4.5 |
| 36 | GMNC906020-02 | 906020 | 95.4*54.7*24.7 | 4.6 | 4.5 | 40.9 | 41.8 |
| 39 | GMNC1027625-01 | 1027625 | 108.1*70.0*30.3 | 68.8 | 21.6 | 3.8 | 6.7 |
| 40 | GMNC1027625-02 | 1027625 | 108.1*70.0*30.3 | 19.1 | 17.2 | 10.7 | 13.6 |
| 41 | GMNC1027625-03 | 1027625 | 108.1*70.0*30.3 | 4.3 | 4.2 | 47.7 | 48.5 |
| 42 | GMNC16013025-01 | 16013025 | 166.9*123.9*30.5 | 26.8 | 13.7 | 8.4 | 13.6 |
| 43 | GMNC16013025-02 | 16013025 | 166.9*123.9*30.5 | 20.1 | 13.1 | 11.3 | 17.1 |
| 44 | GMNC16013025-03 | 16013025 | 166.9*123.9*30.5 | 12.9 | 11.7 | 17.6 | 22.3 |
| 45 | GMNC16013025-04 | 16013025 | 166.9*123.9*30.5 | 2.9 | 2.9 | 79.3 | 81.1 |
